A BETTER LOOKING, EASY TO INSTALL, WOOD POST ANCHOR
With the Titan Post Anchor, you can enjoy the beauty of wood posts without big, unsightly, ugly, anchoring brackets on more surfaces than ever before.
- No notching decking
- No complicated carpentry, framing or hardware
- Posts are higher and drier for longer life
HOW IT WORKS
DRILL
Use an off the shelf 1-1/4" dia. by 2" deep hole saw to cut a pilot cut for the tube.
Use a 1-3/4" dia. hole saw for 6x6 and 8x8 post anchors.
DRIVE
Use a 3 lb mini sledge to drive tube into post beyond the depth of hole saw cut.
FASTEN
Pre-drill holes and drive lag screws into the post.
PRODUCT INSTALLATION GUIDES
4x4/4x6 Post Anchor Instructions
6x6 Post Anchor Instructions
8x8 Post Anchor Instructions
WHY IT WORKS

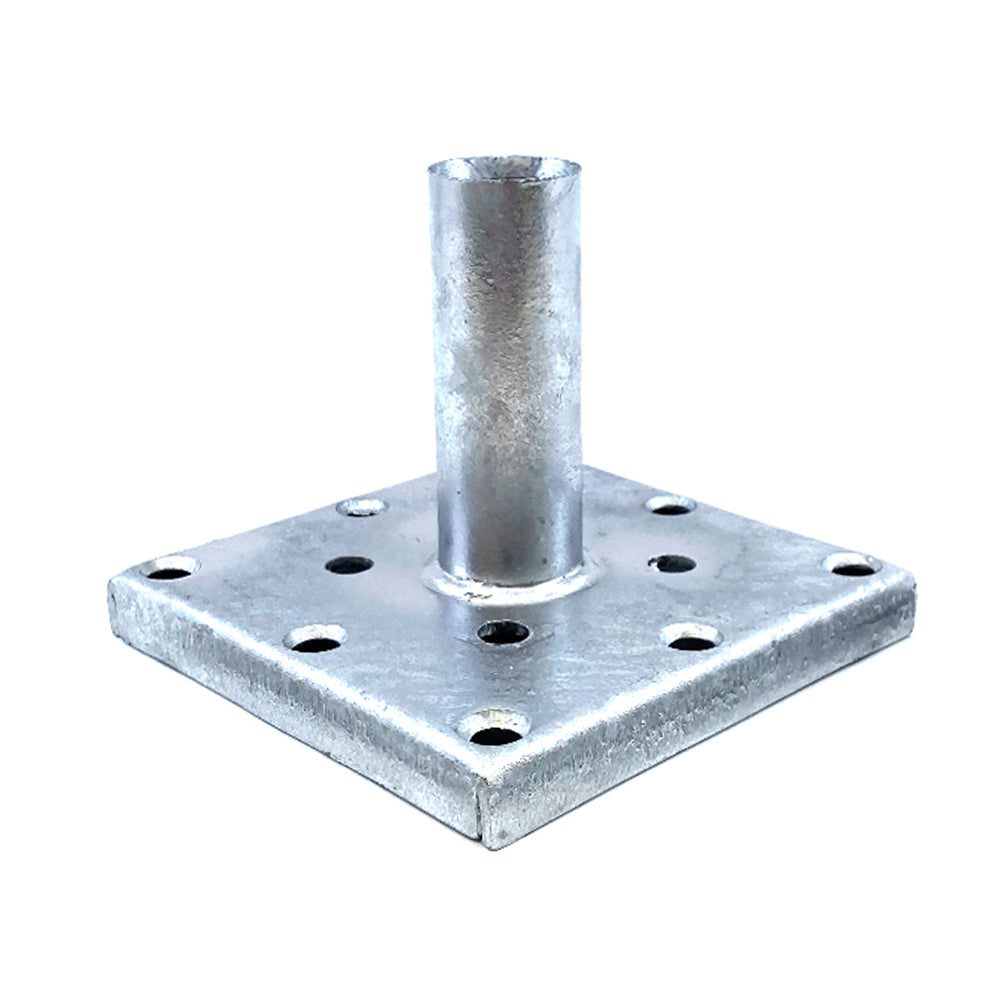

A sharp-edged, lightweight, rigid tube cuts deep into the core of the wood post and diverts enough load away from the screws to increase the overall load resistance. It is now possible for a surface-mounted anchor to be used for residential code-compliant wood railings.
A truly innovative and effective solution.
INSTALL ON WOOD
To properly secure the post anchor to a wood surface, ensure that there is wood blocking like a 2x6 or 2x8 below the deck boards and between the joist.
Pre-drill the screw holes if they are too close to the edge of a board to prevent splitting.
COMPOSITE, SYNTHETIC OR HARDWOOD
The same principle applies to composite and synthetic deck boards. It's a good idea to pre-drill the screw holes so the screws can drive in easier without snapping off the heads.
The composite and synthetic material can be very dense and sometimes similar to hardwoods.
The composite and synthetic material can be very dense and sometimes similar to hardwoods.
AND EVEN CONCRETE OR MASONRY
Set one screw to secure the anchor while pre-drilling the other holes. Drill 1/2" deeper than the length of the screw.
Once the holes are drilled, remove the template anchor and position the post and anchor over the holes for attachment.
One concrete screw per corner is enough to keep the post and anchor secure given the pull-out resistance of each screw.
DIMENSIONS
All Proline (PR) post anchors are hot zinc galvanzied, powder coated and feature countersunk screw holes.
TIPR 4402
This model will work with posts between 3-½" and 4" square.
TIPR 4602
This model works with nominal 4x6 posts and up to true 4"x 6".
TIPR 6602
Great for railings, pergolas, pavillions and support columns. Secures posts between 5-½" and 6" square.
TIPR 8802
The model is often used for large timber construction projects and secures posts between 7-¼" to 8" square.
RESIDENTIAL CODE COMPLIANCE
The Titan Post Anchor has been independently tested by world-renowned engineering firm Intertek for residential compliance in the United States and Canada when installed at recommended post height and spacing.
The USA tests have been carried out in accordance with AC273 for Handrails and Guards as set out by the IRC. Canadian tests have been done in accordance with the Canadian Building Code with applicability for all ten provinces.
For a copy of the manufacturer's sealed engineering reports click here.
WARRANTY
Download a full-size copy of the Warranty.
